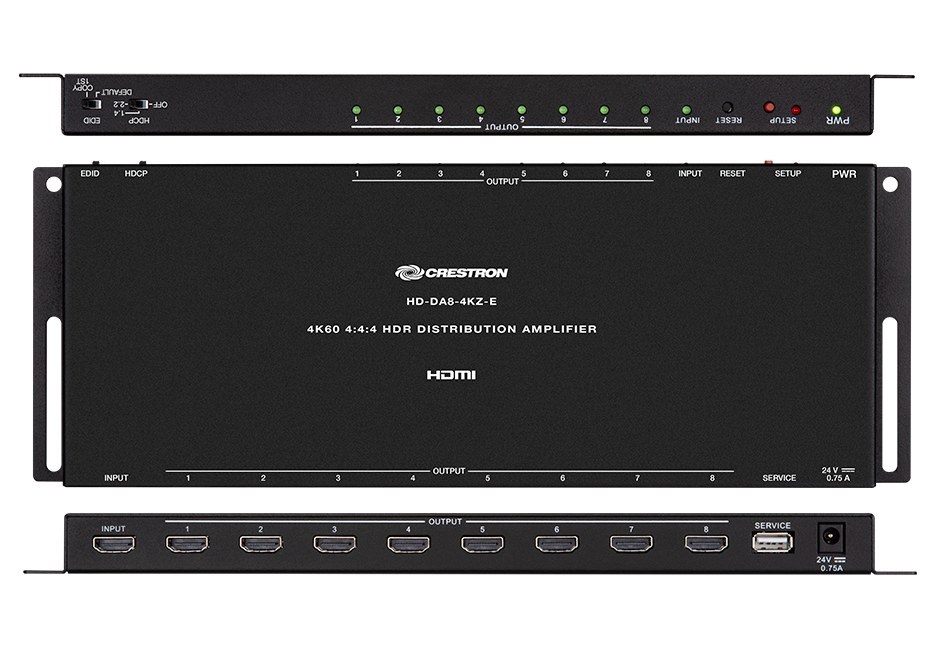

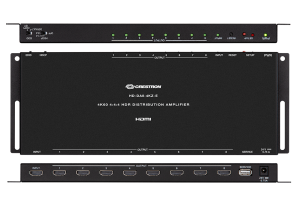

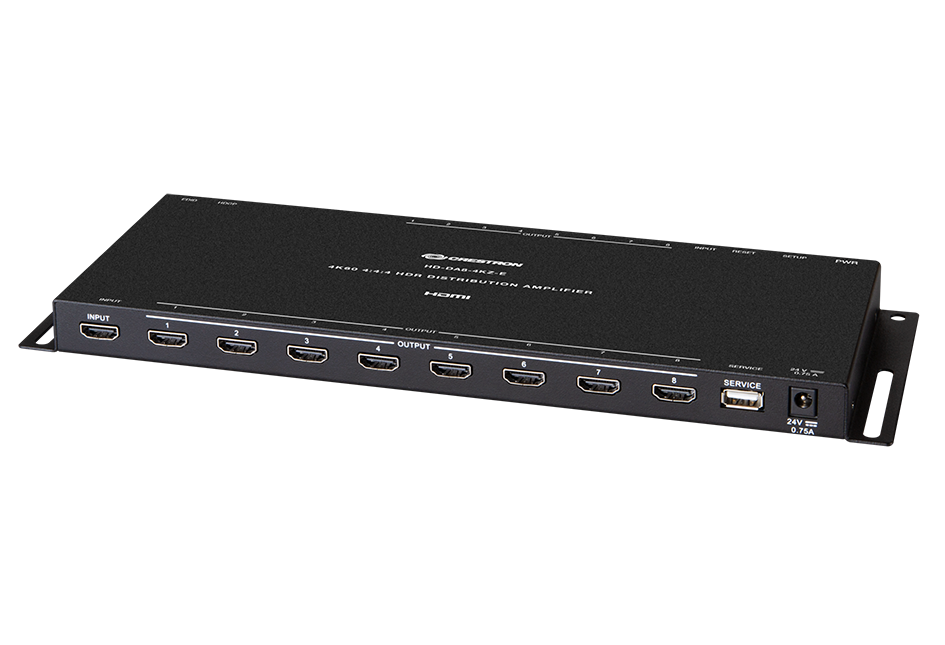

The Crestron® HD-DA8-4KZ-E is a simple to use, high-performance 4K AV distribution amplifier designed to split a single HDMI® signal to feed up to eight separate displays, switchers, and/or other devices. It provides full support for UHD and DCI 4K60 4:4:4 and HDR video, HDCP 1.4 or 2.2 copy protection, and high-bitrate 7.1 audio, to ensure optimal performance and compatibility for any HD or 4K video application. No programming or control system is required for operation.[1]
For smaller applications, refer to models HD-DA2-4KZ-E and HD-DA4-4KZ-E.
Key Features
- Splits one HDMI® source to eight outputs
- Handles 4K60 4:4:4 and HDR video signals [1]
- Fully compatible with HD 1080p, UHD 4K, and DCI 4K sources and displays
- Handles 3D video and Deep Color
- Handles Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
- Selectable handling of HDCP 2.2 or HDCP 1.4
- EDID management options
- Input and output video presence indication
- No programming or control system required
- Thin profile – less than one inch deep
- Surface, shelf, or single rack rail mountable
- External 100-240V universal power pack included
| Video | |||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support[1] (DVI & Dual-Mode DisplayPort compatible[2]) | ||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI w/HDR10, Deep Color, 3D, & 4K60 4:4:4 support[1] (DVI compatible[2]) | ||||||||||||||||||||||||||||||||
| Copy Protection | Selectable for HDCP 2.2, HDCP 1.4, or HDCP disabled | ||||||||||||||||||||||||||||||||
Maximum Resolutions
NOTE: Common resolutions are shown; other custom resolutions are supported at pixel | |||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI (Dual-Mode DisplayPort compatible[2]) | ||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | ||||||||||||||||||||||||||||||||
| Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS-ES, DTS 96/24, DTS HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||
| USB | USB 2.0 host; supports firmware update and custom EDID upload via a USB flash drive | ||||||||||||||||||||||||||||||||
| HDMI | HDCP & EDID (does not pass CEC) | ||||||||||||||||||||||||||||||||
| HDCP Version | Selectable for HDCP 2.2, 1.4, or OFF; HDCP encrypted content is blanked in OFF mode | ||||||||||||||||||||||||||||||||
| EDID Mode | Selectable for DEFAULT or COPY 1ST; • The factory default EDID is 4K60 4:4:4 non-HDR video with 2-channel LPCM audio; • The factory default EDID can be replaced with a custom EDID via USB; • Sliding the switch from DEFAULT to COPY 1ST copies and stores the EDID from the device at OUTPUT 1 and passes it to the INPUT source device; • Sliding the switch from COPY 1ST to DEFAULT erases the stored EDID and uses the factory default or custom EDID; Note: Changing the device at OUTPUT 1 will not update the stored EDID until the switch is moved to DEFAULT and back to COPY 1ST | ||||||||||||||||||||||||||||||||
| Connectors | |||||||||||||||||||||||||||||||||
| INPUT | (1) HDMI Type A connector, female; HDMI digital video/audio input[1]; (DVI & Dual-Mode DisplayPort compatible[2]) | ||||||||||||||||||||||||||||||||
| OUTPUT 1 – 8 | (8) HDMI Type A connectors, female; HDMI digital video/audio outputs[1]; (DVI compatible[2]) | ||||||||||||||||||||||||||||||||
| SERVICE | (1) USB Type A connector, female; USB 2.0 host port; For firmware update and custom EDID upload via a USB flash drive | ||||||||||||||||||||||||||||||||
| 24VDC 0.75A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2407WU power pack included | ||||||||||||||||||||||||||||||||
| Controls & Indicators | |||||||||||||||||||||||||||||||||
| PWR | (1) Bi-color LED, indicates operating power is supplied via the power pack; illuminates amber while booting, green when operating | ||||||||||||||||||||||||||||||||
| SETUP | (1) Pushbutton and (1) red LED, restores factory settings | ||||||||||||||||||||||||||||||||
| RESET | (1) Recessed pushbutton for hardware reset | ||||||||||||||||||||||||||||||||
| INPUT | (1) Green LED, indicates video signal presence at the HDMI input | ||||||||||||||||||||||||||||||||
| OUTPUT 1 – 8 | (8) Green LEDs, each indicates video signal transmission at the corresponding HDMI output | ||||||||||||||||||||||||||||||||
| HDCP | (1) 3-position slide switch, selects the HDCP version (OFF, 1.4, or 2.2) | ||||||||||||||||||||||||||||||||
| EDID | (1) 2-position slide switch, selects the EDID mode (DEFAUT or COPY 1ST) | ||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||
| Power Pack (included) | Input: 100-240 Volts AC, 50/60 Hz; Output: 0.75 Amps @ 24 Volts DC; Model: PW-2407WU | ||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | ||||||||||||||||||||||||||||||||
| Humidity | 10% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||
| Enclosure | |||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, with (2) integral mounting flanges | ||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mount, or attach to a single rack rail | ||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||
| Height | 0.87 in (22 mm) | ||||||||||||||||||||||||||||||||
| Width | 12.82 in (326 mm) | ||||||||||||||||||||||||||||||||
| Depth | 4.67 in (119 mm) | ||||||||||||||||||||||||||||||||
