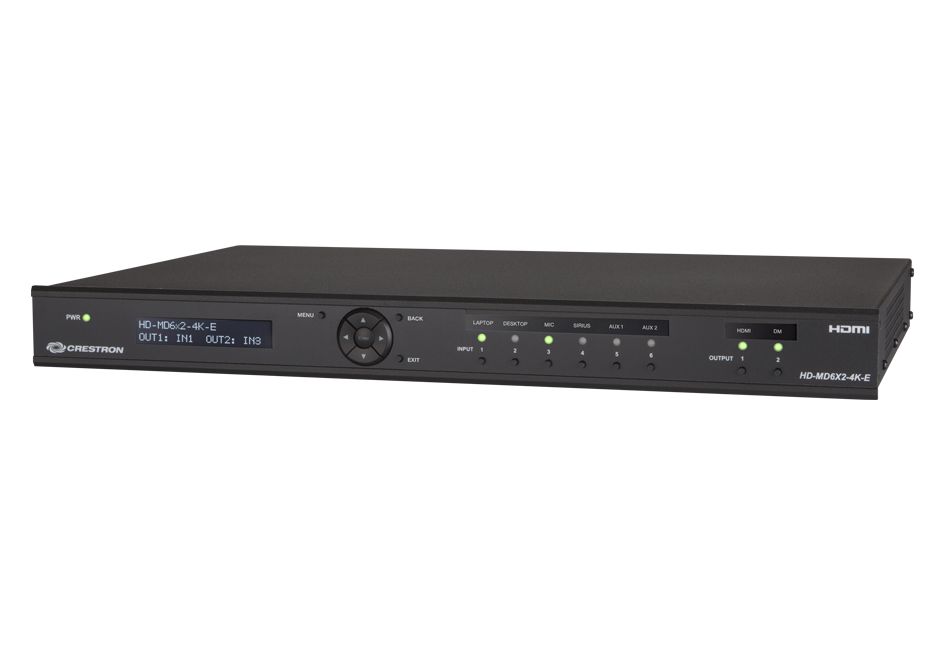

The Crestron® HD-MD6X2-4K-E is a simple to use, ultra high-definition signal switcher with six HDMI® inputs and two HDMI outputs. It handles Full HD 1080p, Ultra HD, 2K, and 4K video signals with support for HDCP, 3D, Deep Color, and high-bitrate 7.1 audio. Operation is enabled using the front panel controls, a Web browser, or a Crestron control system. Simplified setup is facilitated through the front panel OLED display or a Web browser.
4K Ultra HD
4K video support provided by the HD‑MD6X2‑4K‑E is essential for use with the latest generation of UHD and 4K DCI displays and sources, as well as computers and monitors with native resolutions beyond 1080p and WUXGA.
QuickSwitch HD® Technology
Digital media signals are typically encrypted to protect against unauthorized viewing. After authenticating displays or signal processors, a source device must issue a key before delivering an output signal. Crestron QuickSwitch HD technology manages these keys to ensure fast, reliable switching and immunity to display blackouts caused by key authentication.
NOTE: QuickSwitch HD technology requires the use of a scaling HDMI output which is available on DigitalMedia devices such as the DM‑RMC‑4KZ‑SCALER‑C and DMC‑4KZ‑HDO.
EDID Format Management
To ensure that every source gets displayed at its optimal resolution and format, the HD‑MD6X2‑4K‑E provides comprehensive management of EDID (Extended Display Identification Data) information. For applications requiring custom configuration, the HD‑MD6X2‑4K‑E allows for easy assessment of each device’s format and resolution capabilities with the ability to configure signals appropriately.
1RU Rack-Mountable

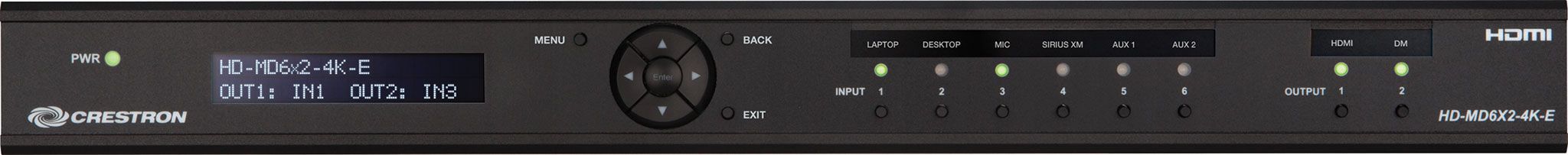

The HD‑MD6X2‑4K‑E can be placed on a shelf, or mounted in a 19 in. EIA equipment rack using the rack ears provided. When rack‑mounted, it occupies a single rack space. The front panel label strips can be customized using Crestron Engraver software or standard 3/8 in. tape labels, allowing for the clear designation of each input and output. Inputs and outputs may also be designated by name to appear on the OLED display.
Key Features
- 6×2 ultra high-definition 4K/60 digital AV switcher
- For standalone use, or as part of a fully integrated Crestron® system
- Fully operable using front panel controls, a Web browser, or a Crestron control system
- Simplified setup through the front panel OLED display or Web browser
- Six HDMI® inputs and two independent HDMI outputs
- DVI and DisplayPort Multimode compatible[1]
- QuickSwitch HD® technology manages HDCP keys for fast, reliable switching
- Comprehensive built-in EDID configuration tools
- Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
- High-speed Ethernet LAN connection
- Single-space 19” rack-mountable design
- Universal 100-240V external power pack included
| Features | ||
| 6×2 digital AV switcher, QuickSwitch HD® technology, local or Web browser setup and control, Crestron® controllable | ||
| Video | ||
| Input Signal Types | HDMI® w/Deep Color, 3D, & 4K (DVI & DisplayPort Multimode compatible [1]) | |
| Output Signal Types | HDMI w/Deep Color, 3D, & 4K (DVI compatible [1]) | |
| Maximum Resolutions | |||||
| Scan Type | Resolution | Frame Rate | Color Sampling | Color Depth | |
| Progressive | 4096×2160 4K DCI & 3840×2160 Ultra HD | 24 Hz | 4:4:4 | 30 bit | |
| 30 Hz | 4:4:4 | 24 bit | |||
| 30 Hz | 4:2:2 | 36 bit | |||
| 60 Hz | 4:2:0 | 24 bit | |||
| 2560×1600 WQXGA | 60 Hz | 4:4:4 | 36 bit | ||
| 1920×1080 HD 1080p | 60 Hz | 4:4:4 | 36 bit | ||
| Interlaced | 1920×1080 HD 1080i | 30 Hz | 4:4:4 | 36 bit | |
| NOTE: Common resolutions are shown; other custom resolutions are supported at pixel clock rates up to 300 MHz | |||||
| Audio | ||
| Input Signal Types | HDMI (DisplayPort Multimode compatible [1]) | |
| Output Signal Types | HDMI | |
| Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels [6] | |
| Communications | ||
| Ethernet | 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, Web browser setup and control, Crestron control system integration | |
| USB | For factory use only | |
| HDMI | HDCP, EDID | |
| NOTE: Supports management of EDID | ||
| Connectors | ||
| INPUT 1 – 6 | (6) 19-pin Type A HDMI female; HDMI digital video/audio inputs; Also supports DVI and DisplayPort Multimode [1] | |
| OUTPUT 1 – 2 | (2) 19-pin Type A HDMI female; HDMI digital video/audio outputs; Also supports DVI [1] | |
| SERVICE | (1) USB Type A female; For factory use only | |
| LAN | (1) 8-wire RJ45 female; 10Base-T/100Base-TX Ethernet port | |
| 24VDC 0.75A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2407WU power pack included | |
| Display | ||
| Display Type | 2×20 character alphanumeric OLED | |
| Functions | Displays setup and configuration menus, signal information, customizable input names | |
| Controls & Indicators | ||
| PWR | (1) bicolor green/amber LED, indicates operating power supplied from power pack, turns amber while booting and green when operating | |
| MENU | (1) pushbutton, opens the setup menu | |
| Λ, V, <, > | (4) pushbuttons, for menu navigation and parameter adjustment | |
| Enter | (1) pushbutton, applies a change | |
| BACK | (1) pushbutton, steps menu back one level | |
| EXIT | (1) pushbutton, exits the menu | |
| INPUT 1 – 6 | (6) pushbuttons for input selection, and (6) bicolor green/amber LEDs to indicate which input is currently routed or pending output selection, and signal presence at each corresponding input | |
| OUTPUT 1 – 2 | (2) pushbuttons for output selection, and (2) bicolor green/amber LEDs to indicate sink detection and signal presence at each corresponding HDMI output | |
| LAN (rear) | (2) LEDs, amber LED indicates Ethernet activity, green LED indicates Ethernet link status | |
| Power Requirements | ||
| Power Pack | 0.75 Amps @ 24 Volts DC; 100-240 Volts AC, 50/60 Hz power pack, model PW-2407WU included | |
| Environmental | ||
| Temperature | 32° to 104°F (0° to 40°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| Chassis | Metal, black finish, vented sides | |
| Front Panel | Metal, black finish with polycarbonate label overlay | |
| Mounting | Freestanding or 1U 19-inch rack-mountable (adhesive feet and rack ears included) | |
| Dimensions | ||
| Height | 1.71 in (44 mm) | |
| Width | 18.96 in (481 mm); 17.29 in (439 mm) without rack ears | |
| Depth | 10.83 in (275 mm) | |
| Weight | ||
| 4.10 lb (1.82 kg) | ||
