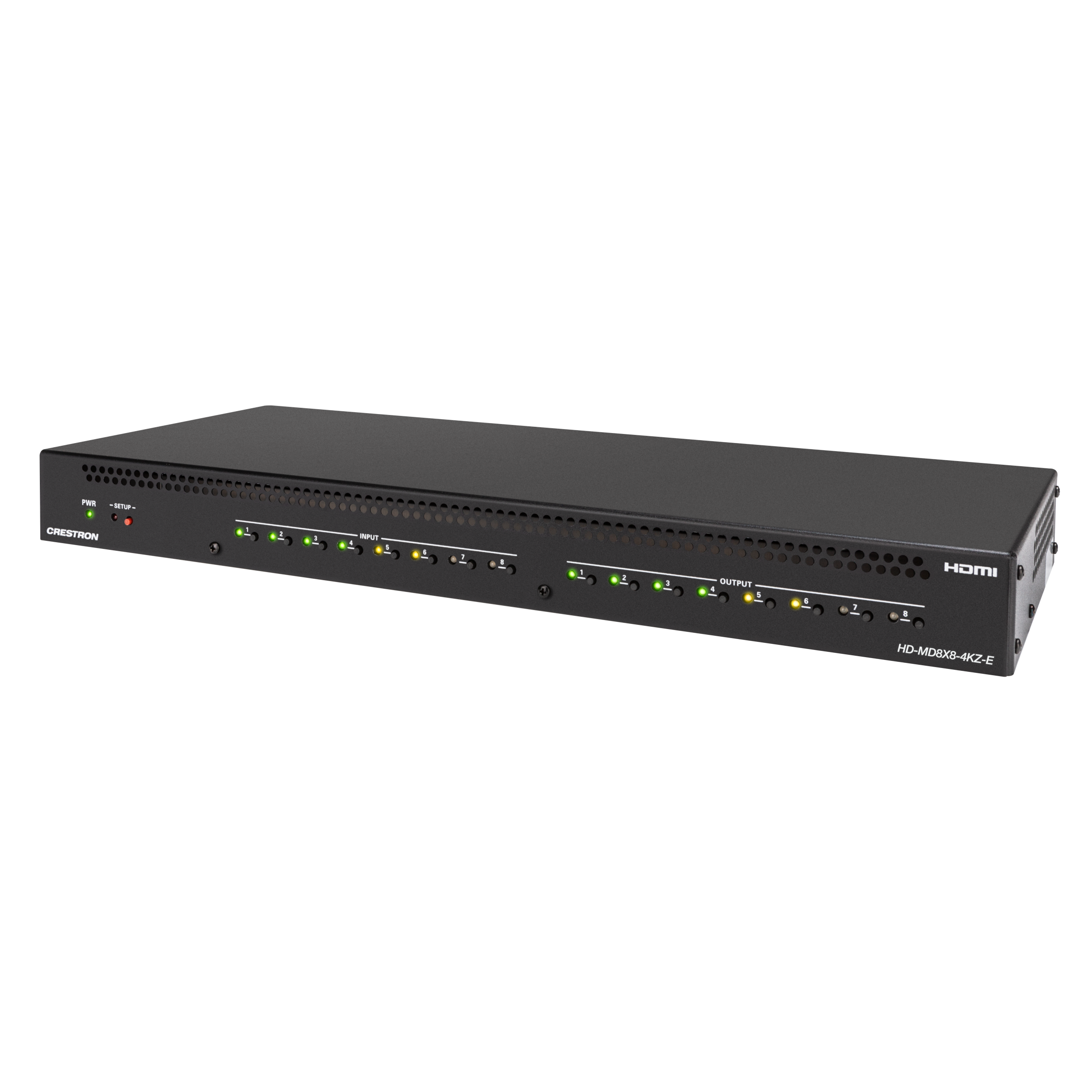

The HD-MD8X8-4KZ-E is a 4K60 4:4:4 HDR (High Dynamic Range) AV switcher that provides a cost-effective solution for professional AV applications. Equipped with eight HDMI® inputs and eight HDMI outputs, the HD-MD8X8-4KZ-E includes features such as EDID management, HDCP 2.3 compliance, enterprise-grade security, and XiO Cloud® service support.
4K60 4:4:4 and HDR Support
The HD-MD8X8-4KZ-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.
EDID Management
The HD-MD8X8-4KZ-E provides comprehensive management of EDID (Extended Display Identification Data) to ensure that every source is displayed at the optimal resolution and format. For applications requiring a custom configuration, the HD-MD8X8-4KZ-E enables assessment of the format and resolution capabilities of any device that is connected to an HDMI output of the switcher. The HD-MD8X8-4KZ-E provides the ability to configure signals appropriately for the most desirable and predictable behavior.
HDMI Audio De-embedding
Embedded HDMI 2-channel LPCM audio can be extracted from the selected HDMI input and transmitted to either of the two AUX stereo audio outputs. Volume and mute control are configurable for each of the HDMI outputs and AUX audio outputs independently.
Device Control via CEC
Under the management of a control system, CEC (Consumer Electronics Control) over the HDMI connections can control the source and display devices, potentially eliminating the need for dedicated serial cables or IR emitters. CEC over the HDMI outputs can also enable the display devices to be turned on or off automatically without the use of a control system.
Enterprise-Grade Security
The HD-MD8X8-4KZ-E includes advanced security features and protocols. Using 802.1X authentication, Active Directory® credential management, PKI authentication, TLS, SSH, and HTTPS, the HD-MD8X8-4KZ-E provides a true enterprise-grade AV switcher.
Built-In Web Interface
Configuration of the HD-MD8X8-4KZ-E can be accomplished by using the built-in web interface. The configuration of a single unit can be downloaded to a computer or mobile device and then uploaded to multiple HD-MD8X8-4KZ-E units to simplify system installation.
.AV Framework™ Technology Support
In addition to a built-in web interface and control system programming, built-in .AV Framework technology of a Crestron control system can be used to configure and control the HD-MD8X8-4KZ-E. For information about .AV Framework technology and the supported Crestron control systems, visit www.crestron.com/avframework.
XiO Cloud® Service Support
The HD-MD8X8-4KZ-E is compatible with the XiO Cloud service, which is an IoT (Internet of Things) platform for remotely provisioning, monitoring, and managing Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and using industry-leading Azure IoT Hub technology, the XiO Cloud service enables installers and IT managers to deploy and manage thousands of devices in the amount of time it previously took to manage a single device. Unlike other virtual machine-based cloud solutions, Azure services provide unlimited scalability to suit the ever-growing needs of an enterprise. For more information, visit www.crestron.com/xiocloud.
1 RU Rack-Mountable Design
The HD-MD8X8-4KZ-E can be mounted into a 19-inch EIA equipment rack using the included rack ears. The device occupies 1 RU of rack space.
Key Features
- 4K60 4:4:4 digital AV switcher
- HDR10, HDR10+, and Dolby Vision® video formats
- Eight HDMI® inputs and eight HDMI outputs
- EDID management
- HDCP 2.3 compliance
- HDMI audio de-embedding
- Device control via CEC
- Enterprise-grade security
- Built-in web interface
- Compatibility with Crestron® 3-Series® or later control systems
- .AV Framework™ technology support
- XiO Cloud® service support
- 1 RU rack-mountable design
- 100-240 VAC power pack included
| Video | ||||||||||||||||||||||||||||||||||||||
| Input Signal Types | HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, 4K60 4:4:4 support1, 2 (DVI and Dual-Mode DisplayPort™ interface compatible3) | |||||||||||||||||||||||||||||||||||||
| Output Signal Types | HDMI with HDR10, HDR10+, Dolby Vision, Deep Color, and 4K60 4:4:4 support1, 2 (DVI compatible4) | |||||||||||||||||||||||||||||||||||||
| Switcher | 8×8 digital AV switcher | |||||||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.3 | |||||||||||||||||||||||||||||||||||||
| Maximum Resolutions | Common resolutions are listed in the following table. | |||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| Audio – General | ||||||||||||||||||||||||||||||||||||||
| Digital-To-Analog Conversion | 24-bit 48 kHz | |||||||||||||||||||||||||||||||||||||
| Frequency Response | ±0.5 dB, 20 Hz to 20 kHz | |||||||||||||||||||||||||||||||||||||
| THD+N | <0.005%, 1 kHz, 10 dBV | |||||||||||||||||||||||||||||||||||||
| S/N Ratio | >95 dB, 10 dBV, 20 Hz to 20 KHz, A-weighted | |||||||||||||||||||||||||||||||||||||
| Crosstalk | ≤90 dB, 1 KHz, for multiple inputs only | |||||||||||||||||||||||||||||||||||||
| Stereo Separation | ≤80 dB, 20 Hz to 20 kHz | |||||||||||||||||||||||||||||||||||||
| Audio – Source Inputs | ||||||||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI (Dual-Mode DisplayPort interface compatible3) | |||||||||||||||||||||||||||||||||||||
| Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES, DTS 96/24, DTS HD® High Res, DTS-HD Master Audio, DTS:X®, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||
| Audio – Digital Output | ||||||||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | |||||||||||||||||||||||||||||||||||||
| Formats | Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels | |||||||||||||||||||||||||||||||||||||
| Source | -80 dB to +20 dB adjustment range, plus Mute | |||||||||||||||||||||||||||||||||||||
| Master Volume | -80 dB to +20 dB adjustment range, plus Mute | |||||||||||||||||||||||||||||||||||||
| Audio – Analog Line Output | ||||||||||||||||||||||||||||||||||||||
| Output Signal Type/Format | Stereo 2-channel | |||||||||||||||||||||||||||||||||||||
| Volume Control | -80 dB to +20 dB adjustment range, plus Mute, Mono, and Stereo | |||||||||||||||||||||||||||||||||||||
| Communications | ||||||||||||||||||||||||||||||||||||||
| Ethernet | 100/1000 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, Web browser setup and control, Crestron control system integration, IEEE 802.1X, Secure CIP, Authentication, SSH/SSL, TLS | |||||||||||||||||||||||||||||||||||||
| USB | For firmware loading and configuration management and to power a USB powered device | |||||||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.3, EDID, CEC | |||||||||||||||||||||||||||||||||||||

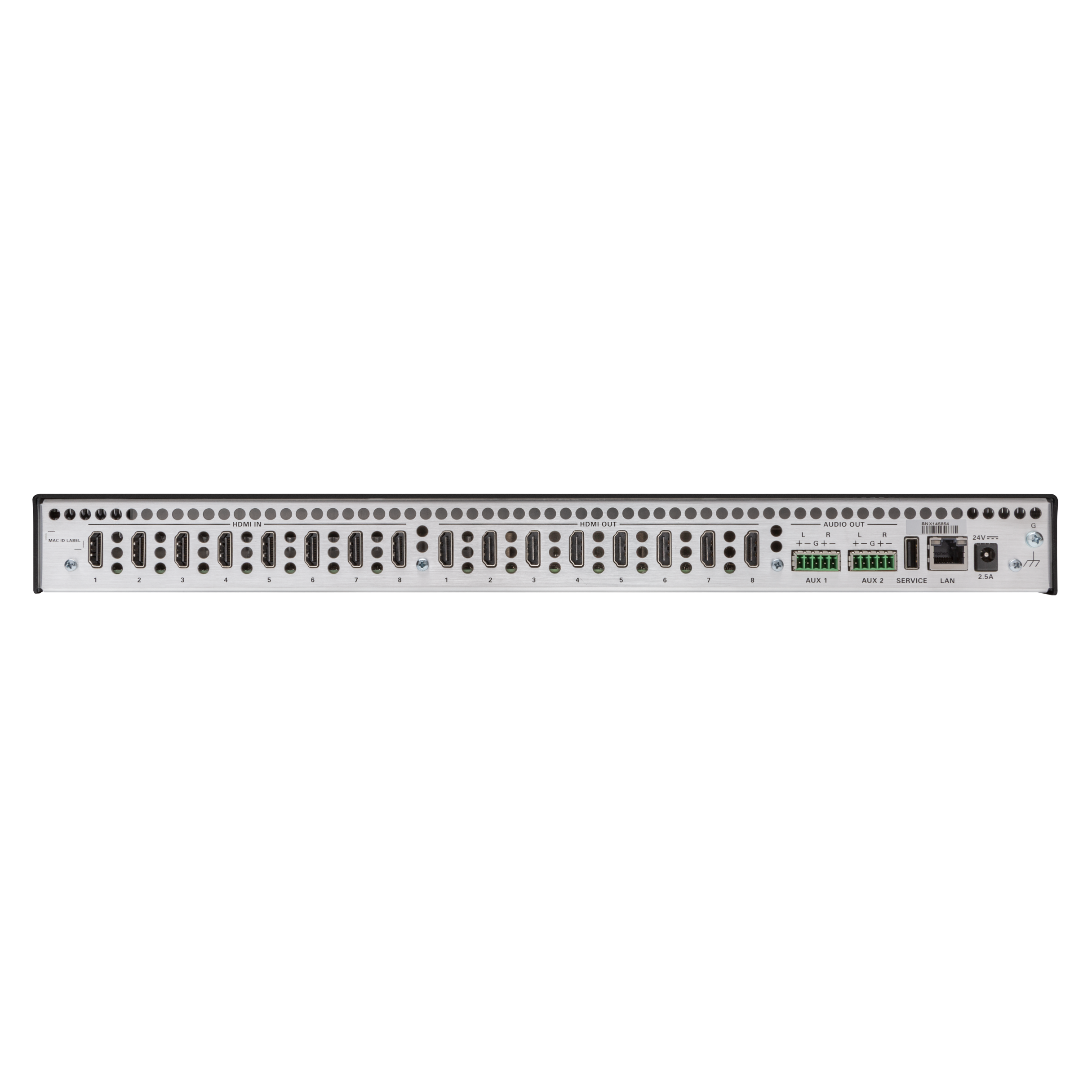

| Connectors | ||||||||||||||||||||||||||||||||||||||
| HDMI IN 1-8 | (8) 19-pin Type A connector, female; HDMI digital video/audio input (DVI and Dual-Mode DisplayPort interface compatible3) | |||||||||||||||||||||||||||||||||||||
| HDMI OUT 1-8 | (8) 19-pin Type A connector, female; HDMI digital video/audio output (DVI compatible4) | |||||||||||||||||||||||||||||||||||||
| AUDIO OUT, AUX 1-2 | (2) 5-pin 3.5 mm detachable terminal block; Balanced/unbalanced stereo line-level audio output; Output Impedance: <100 Ohms; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced | |||||||||||||||||||||||||||||||||||||
| LAN | (1) 8-pin RJ-45 connector, female; 100BASE-TX/1000BASE-T Ethernet port | |||||||||||||||||||||||||||||||||||||
| 24VDC 2.5 A | (1) 2.1 x 5.5 mm DC power connector; 24 VDC power input; PW-2420RU power pack included | |||||||||||||||||||||||||||||||||||||
| SERVICE | (1) USB Type A female; For firmware loading and configuration management; Can also provide up to 5 V 500 mA power to a USB powered device | |||||||||||||||||||||||||||||||||||||
| G | (1) 6-32 screw, chassis ground lug | |||||||||||||||||||||||||||||||||||||

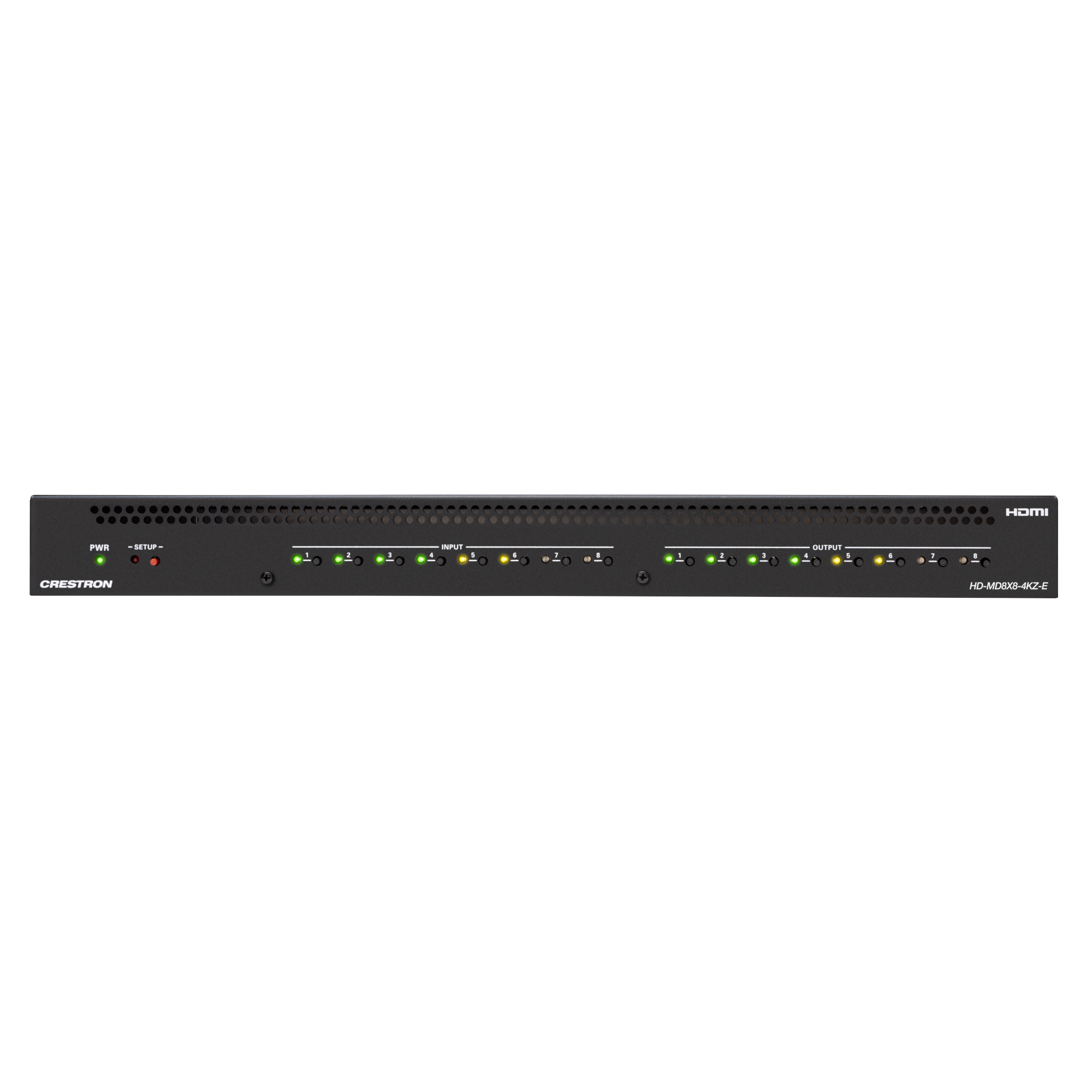

| Controls and Indicators | ||||||||||||||||||||||||||||||||||||||
| PWR | (1) LED. Amber indicates that the device is booting. Green indicates that the device is operational. | |||||||||||||||||||||||||||||||||||||
| INPUT 1-8 | (8) Push buttons for manual input selection and (8) LEDs. Green indicates that the corresponding input is routed to an output. Amber indicates that a source is detected at the corresponding input but is not routed to an output. | |||||||||||||||||||||||||||||||||||||
| OUTPUT 1-8 | (8) Push buttons for manual output selection and (8) LEDs. Green indicates that a display or other destination device is detected and the corresponding output is transmitting video. Amber indicates that a display or other destination device is detected but no video is routed to the corresponding output. | |||||||||||||||||||||||||||||||||||||
| SETUP | (1) Red LED and (1) push button for display of IP address on connected HDMI outputs | |||||||||||||||||||||||||||||||||||||
| Ethernet | (2) LEDs on RJ-45 LAN connector. Link status LED: Green indicates that a 100BASE-TX link is established. Amber indicates that a 1000BASE-T link is established. Ethernet activity LED: Flashing amber indicates Ethernet activity. | |||||||||||||||||||||||||||||||||||||
| Power | ||||||||||||||||||||||||||||||||||||||
| Power Pack (Included) | Input: 1.3 A maximum @ 100-240 VAC, 50/60 Hz; Output: 2.5 A @ 24 VDC; Model: PW-2420RU | |||||||||||||||||||||||||||||||||||||
| Power Consumption | 29 W typical | |||||||||||||||||||||||||||||||||||||
| Environmental | ||||||||||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | |||||||||||||||||||||||||||||||||||||
| Humidity | 10% to 90% RH (non-condensing) | |||||||||||||||||||||||||||||||||||||
| Heat Dissipation | 98 BTU/hr typical | |||||||||||||||||||||||||||||||||||||
| Acoustic Noise | 33.55 dBA typical | |||||||||||||||||||||||||||||||||||||
| Construction | ||||||||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, vented sides | |||||||||||||||||||||||||||||||||||||
| Mounting | 1 RU 19-inch rack-mountable (rack ears included) | |||||||||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||||||||||
| Height | 1.72 in. (44 mm) | |||||||||||||||||||||||||||||||||||||
| Width | 17.33 in. (441 mm) without rack ears | |||||||||||||||||||||||||||||||||||||
| Depth | 7.02 in. (179 mm) | |||||||||||||||||||||||||||||||||||||
| Weight | ||||||||||||||||||||||||||||||||||||||
| 5.15 lb (2.37 kg) | ||||||||||||||||||||||||||||||||||||||
| Compliance | ||||||||||||||||||||||||||||||||||||||
| Regulatory Model | M201946002 | |||||||||||||||||||||||||||||||||||||
| Bureau Veritas Listed for US & Canada, IC, CE, FCC Part 15 Class B digital device | ||||||||||||||||||||||||||||||||||||||
