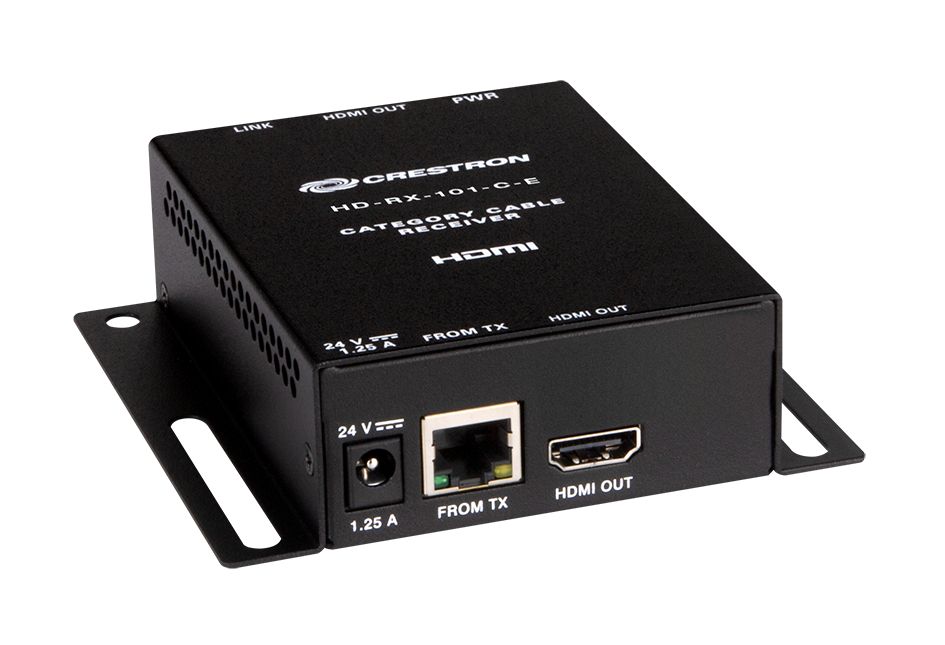

The HD-RX-101-C-E is a surface-mountable DM Lite receiver designed to pair with a DM Lite transmitter to form a point-to-point signal extender for HDMI® signals. The DM Lite family of products offers a very simple and versatile solution for extending HD, UHD, 2K, and 4K video signals, with stereo or surround sound audio, over a single CAT5e (or better) cable. A cable length of up to 230 ft (70 m) is supported for HD 1080p, WUXGA, and 2K signals, or up to 130 ft (40 m) for UHD and 4K.[1]
For applications requiring a wall plate version, refer to the HD-RX-101-C-1G-E-B-T.
For applications that require IR or RS-232 signal extension, refer to the HD-RXC-101-C-E.

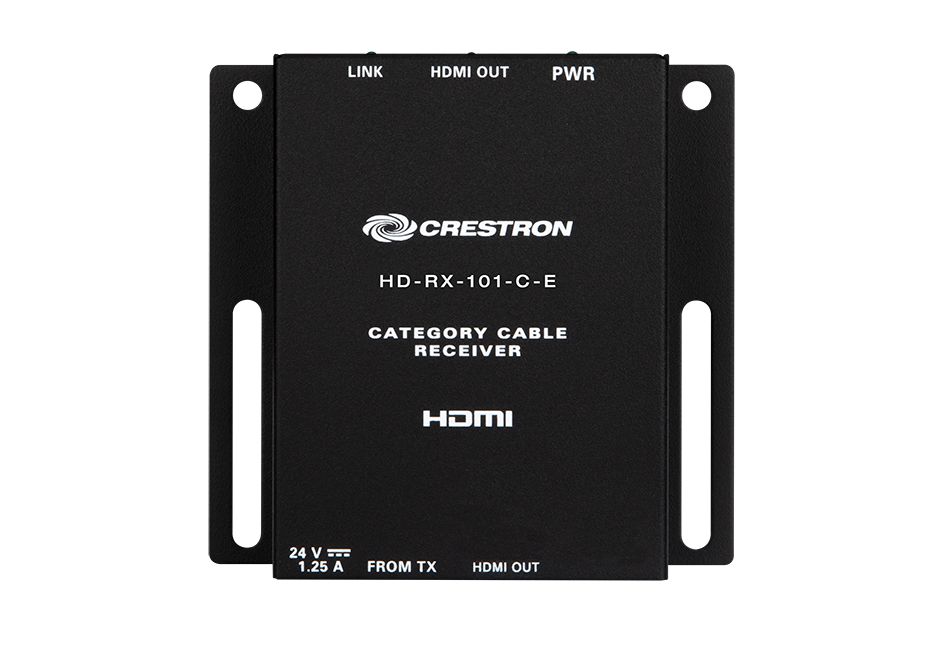

The HD-RX-101-C-E is designed to mount on a wall behind a flat-panel display, on the ceiling above a projector, or on any other flat surface. It can also be attached to a single rack rail in the back of an equipment cabinet. When powered using the provided wall mount power pack, the HD-RX-101-C-E also supplies power to the connected transmitter over the link cable. Alternately, a power pack may be connected to the transmitter, which in turn supplies power to the HD-RX-101-C-E over the link cable.[2]
Important: This product is not addressable from a control system and offers no programmable functionality. AV and CEC signals are simply passed through between a single transmitter and receiver pair. The RJ45 link port on this product is exclusively intended for linking with a single DM Lite transmitter. It should not be used to connect to any other equipment or network. DM Lite is not compatible with PoE, PoDM, DigitalMedia 8G+® (DM 8G+®), or HDBaseT®.
Key Features
- Pairs with a DM Lite transmitter to provide a simple point-to-point signal extender
- Enables extension of HDMI® video and audio signals
- Links to the transmitter via a single CAT5e (or better) twisted pair cable [1]
- Supports 4K and UHD at up to 130 ft (40 m)
- Supports HD 1080p, WUXGA, and 2K at up to 230 ft (70 m)
- Handles 4K video resolutions up to 4K60 4:2:0 and 4K30 4:4:4
- Handles 3D video and Deep Color
- Supports Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
- Compatible with HDMI and DVI display devices[3]
- HDCP 2.2 compliant
- Passes CEC and EDID signals
- Low-profile surface mount design
- Universal 100-240V power pack included[2]
| Video | |||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI w/Deep Color, 3D, & 4K (DVI compatible [3]) | ||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.2 | ||||||||||||||||||||||||||||||||
Maximum Resolutions
| |||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||
| Output Signal Type | HDMI | ||||||||||||||||||||||||||||||||
| Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.2, EDID, CEC pass-through | ||||||||||||||||||||||||||||||||
| DM Lite Link | Proprietary link for connection between one DM Lite TX & RX only | ||||||||||||||||||||||||||||||||

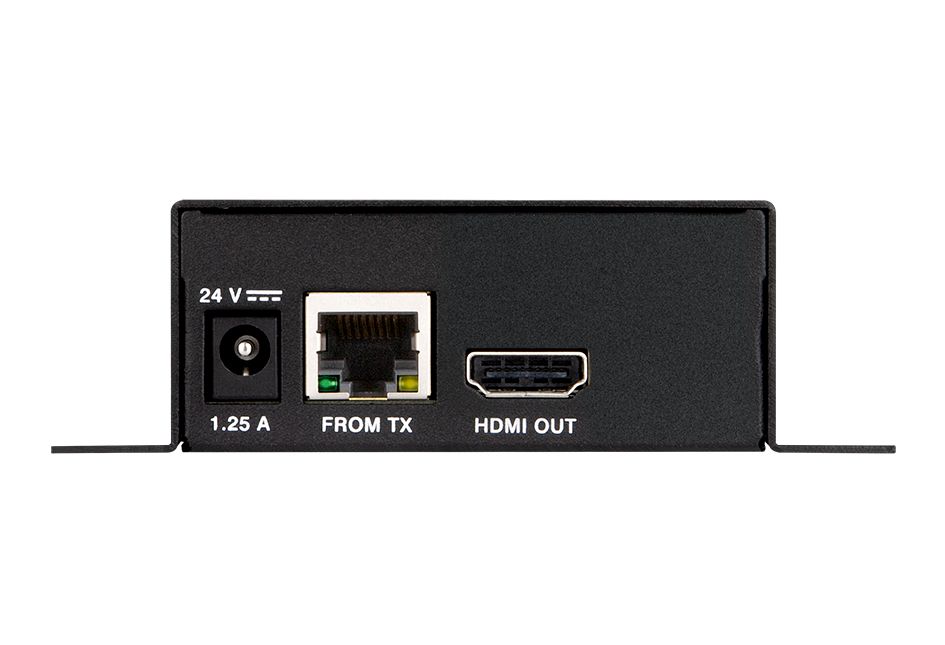

| Connectors | |||||||||||||||||||||||||||||||||
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2412WU power pack included; Note: This connection powers both the receiver and transmitter [2] | ||||||||||||||||||||||||||||||||
| FROM TX | (1) 8-pin RJ45 connector, female, shielded; Link port for connection to a DM Lite transmitter [1] | ||||||||||||||||||||||||||||||||
| HDMI OUT | (1) HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible [3]) | ||||||||||||||||||||||||||||||||

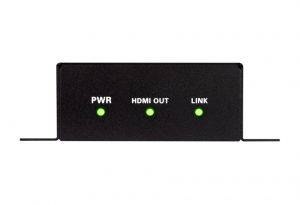

| Indicators | |||||||||||||||||||||||||||||||||
| PWR | (1) Green LED, indicates operating power is supplied from the power pack via the 24VDC input or from the TX via the DM Lite link | ||||||||||||||||||||||||||||||||
| HDMI OUT | (1) Green LED, indicates HDMI output signal presence | ||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates the DM Lite link status | ||||||||||||||||||||||||||||||||
| FROM TX | (2) LEDs (on RJ45 connector), green LED indicates link status, amber LED indicates a valid video signal | ||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||
| Power Pack (included) | Input: 100-240 Volts AC, 50/60 Hz; Output: 1.25 Amps @ 24 Volts DC; Model: PW-2412WU | ||||||||||||||||||||||||||||||||
| Note: The receiver and transmitter are powered together using a single power pack connected at either the receiver or transmitter (not both).[2] | |||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | ||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides | ||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mount, or attach to a single rack rail | ||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||
| Height | 1.26 in (32 mm) | ||||||||||||||||||||||||||||||||
| Width | 4.21 in (107 mm) | ||||||||||||||||||||||||||||||||
| Depth | 4.05 in (103 mm) | ||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||
9.92 oz (281 g)
| |||||||||||||||||||||||||||||||||
