The HD-TX-101-C-E is a surface-mountable DM Lite transmitter designed to pair with a DM Lite receiver to form a point-to-point signal extender for HDMI® signals. The DM Lite family of products offers a very simple and versatile solution for extending HD, UHD, 2K, and 4K video signals, with stereo or surround sound audio, over a single CAT5e (or better) cable. A cable length of up to 230 ft (70 m) is supported for HD 1080p, WUXGA, and 2K signals, or up to 130 ft (40 m) for UHD and 4K.[1]
For applications requiring a wall plate version, refer to the HD-TX-101-C-1G-E-B-T or HD-TX-101-C-1G-E-W-T.
For applications that require IR or RS-232 signal extension, refer to the HD-TXC-101-C-E.
A USB power port is included on the HD-TX-101-C-E to enable use of a Crestron Multihead HD Video Cable (model CBL-MULTI-HD-6, sold separately). The Multihead cable provides expanded input connectivity to support the connection of a laptop computer or mobile device with HDMI, DisplayPort, Mini DisplayPort, or USB Type-C™ video output.
Note: The USB power port supplies power only (500 mA maximum) and is suitable for general use to power USB powered devices. No USB data is passed through this connection. It cannot be used to extend USB data, video, or audio signals.
The HD-TX-101-C-E is designed to mount on a flat surface beneath a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. When powered using the provided wall mount power pack, the HD-TX-101-C-E also supplies power to the connected receiver over the link cable. Alternately, a power pack may be connected to the receiver, which in turn supplies power to the HD-TX-101-C-E over the link cable.<sup>[2]</sup>
Important: This product is not addressable from a control system and offers no programmable functionality. AV and CEC signals are simply passed through between a single transmitter and receiver pair. The RJ45 link port on this product is exclusively intended for linking with a single DM Lite receiver. It should not be used to connect to any other equipment or network. DM Lite is not compatible with PoE, PoDM, DigitalMedia 8G+® (DM 8G+®), or HDBaseT®.
Key Features
- Pairs with a DM Lite receiver to provide a simple point-to-point signal extender
- Enables extension of HDMI® video and audio signals
- Links to the receiver via a single CAT5e (or better) twisted pair cable[1]
- Supports 4K and UHD at up to 130 ft (40 m)
- Supports HD 1080p, WUXGA, and 2K at up to 230 ft (70 m)
- Handles 4K video resolutions up to 4K60 4:2:0 and 4K30 4:4:4
- Handles 3D video and Deep Color
- Supports Dolby® TrueHD, Dolby Atmos®, DTS HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
- Compatible with HDMI, DVI, and Dual-Mode DisplayPort sources [3]
- Compatible with the Crestron Multihead HD Video Cable (CBL-MULTI-HD-6, sold separately)
- USB power port supplies power for the Multihead cable and other USB powered devices
- HDCP 2.2 compliant
- Passes CEC and EDID signals
- Low-profile surface mount design
- Universal 100-240V power pack included
| Video | |||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI w/Deep Color, 3D, & 4K (DVI & Dual-Mode DisplayPort compatible [3]) | ||||||||||||||||||||||||||||||||
| Copy Protection | HDCP 2.2 | ||||||||||||||||||||||||||||||||
Maximum Resolutions
| |||||||||||||||||||||||||||||||||
| Audio | |||||||||||||||||||||||||||||||||
| Input Signal Type | HDMI (Dual-Mode DisplayPort compatible [3]) | ||||||||||||||||||||||||||||||||
| Formats | Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS®, DTS ES, DTS 96/24, DTS HD High Res, DTS-HD Master Audio, DTS:X, LPCM up to 8 channels | ||||||||||||||||||||||||||||||||
| Communications | |||||||||||||||||||||||||||||||||
| HDMI | HDCP 2.2, EDID, CEC pass-through | ||||||||||||||||||||||||||||||||
| DM Lite Link | Proprietary link for connection between one DM Lite TX & RX only | ||||||||||||||||||||||||||||||||

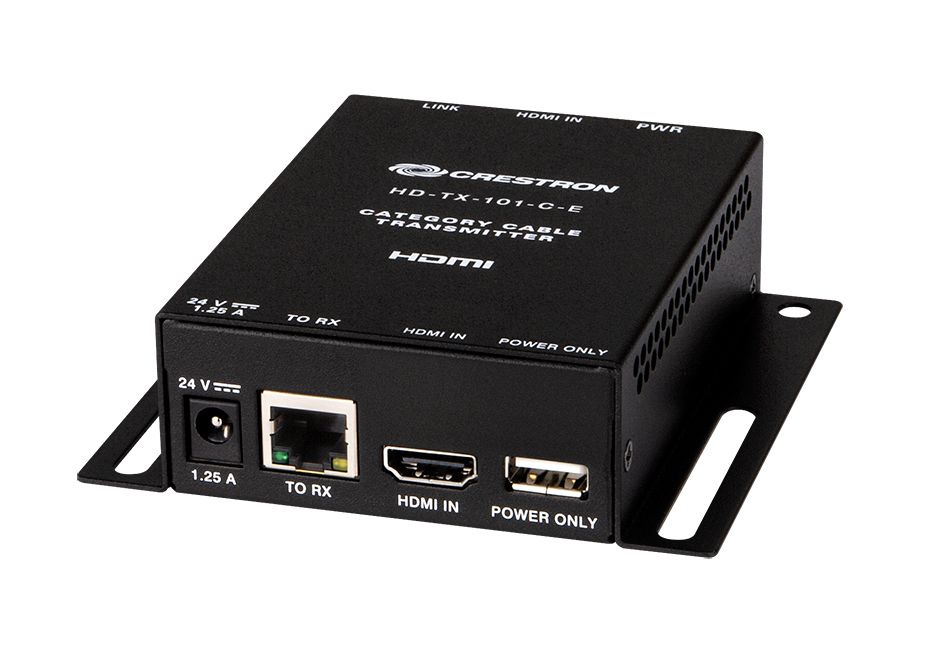

| Connectors | |||||||||||||||||||||||||||||||||
| 24VDC 1.25A | (1) 2.1 x 5.5 mm DC power connector; 24 Volt DC power input; PW-2412WU power pack included; Note: This connection powers both the transmitter and receiver [2] | ||||||||||||||||||||||||||||||||
| TO RX | (1) 8-pin RJ45 connector, female, shielded; Link port for connection to a DM Lite receiver [1] | ||||||||||||||||||||||||||||||||
| HDMI IN | (1) HDMI Type A connector, female; HDMI digital video/audio input (DVI and Dual-Mode DisplayPort compatible [3]) | ||||||||||||||||||||||||||||||||
| POWER ONLY | (1) USB Type A connector, female; USB power port (500 mA maximum output); Supplies power for a Crestron Multihead HD Video Cable (CBL-MULTI-HD-6, sold separately) or other USB powered device | ||||||||||||||||||||||||||||||||

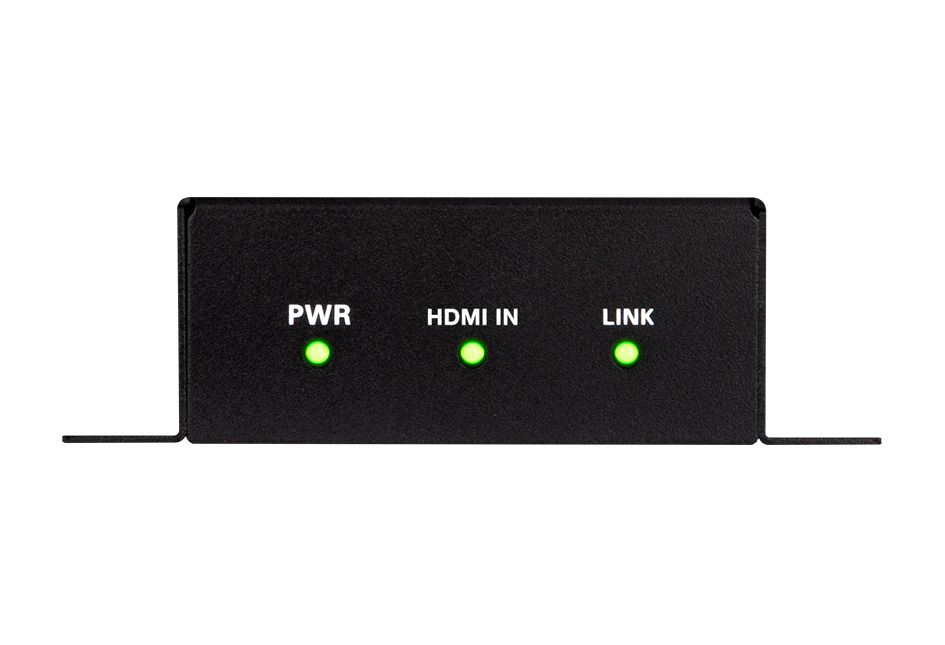

| Indicators | |||||||||||||||||||||||||||||||||
| PWR | (1) Green LED, indicates operating power is supplied from the power pack via the 24VDC input or from the RX via the DM Lite link | ||||||||||||||||||||||||||||||||
| HDMI IN | (1) Green LED, indicates HDMI input signal presence | ||||||||||||||||||||||||||||||||
| LINK | (1) Green LED, indicates the DM Lite link status | ||||||||||||||||||||||||||||||||
| TO RX | (2) LEDs (on RJ45 connector), green LED indicates link status, amber LED indicates a valid video signal | ||||||||||||||||||||||||||||||||
| Power | |||||||||||||||||||||||||||||||||
| Power Pack (included) | Input: 100-240 Volts AC, 50/60 Hz; Output: 1.25 Amps @ 24 Volts DC; Model: PW-2412WU | ||||||||||||||||||||||||||||||||
| Note: The transmitter and receiver are powered together using a single power pack connected at either the transmitter or receiver (not both).[2] | |||||||||||||||||||||||||||||||||
| Environmental | |||||||||||||||||||||||||||||||||
| Temperature | 32° to 104° F (0° to 40° C) | ||||||||||||||||||||||||||||||||
| Humidity | 20% to 90% RH (non-condensing) | ||||||||||||||||||||||||||||||||
| Construction | |||||||||||||||||||||||||||||||||
| Chassis | Metal, black finish, with (2) integral mounting flanges, vented sides | ||||||||||||||||||||||||||||||||
| Mounting | Freestanding, surface mount, or attach to a single rack rail | ||||||||||||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||||||||||
| Height | 1.26 in (32 mm) | ||||||||||||||||||||||||||||||||
| Width | 4.21 in (107 mm) | ||||||||||||||||||||||||||||||||
| Depth | 4.05 in (103 mm) | ||||||||||||||||||||||||||||||||
| Weight | |||||||||||||||||||||||||||||||||
| 9.92 oz (281 g)
| |||||||||||||||||||||||||||||||||
